$52.15
Original: $148.99

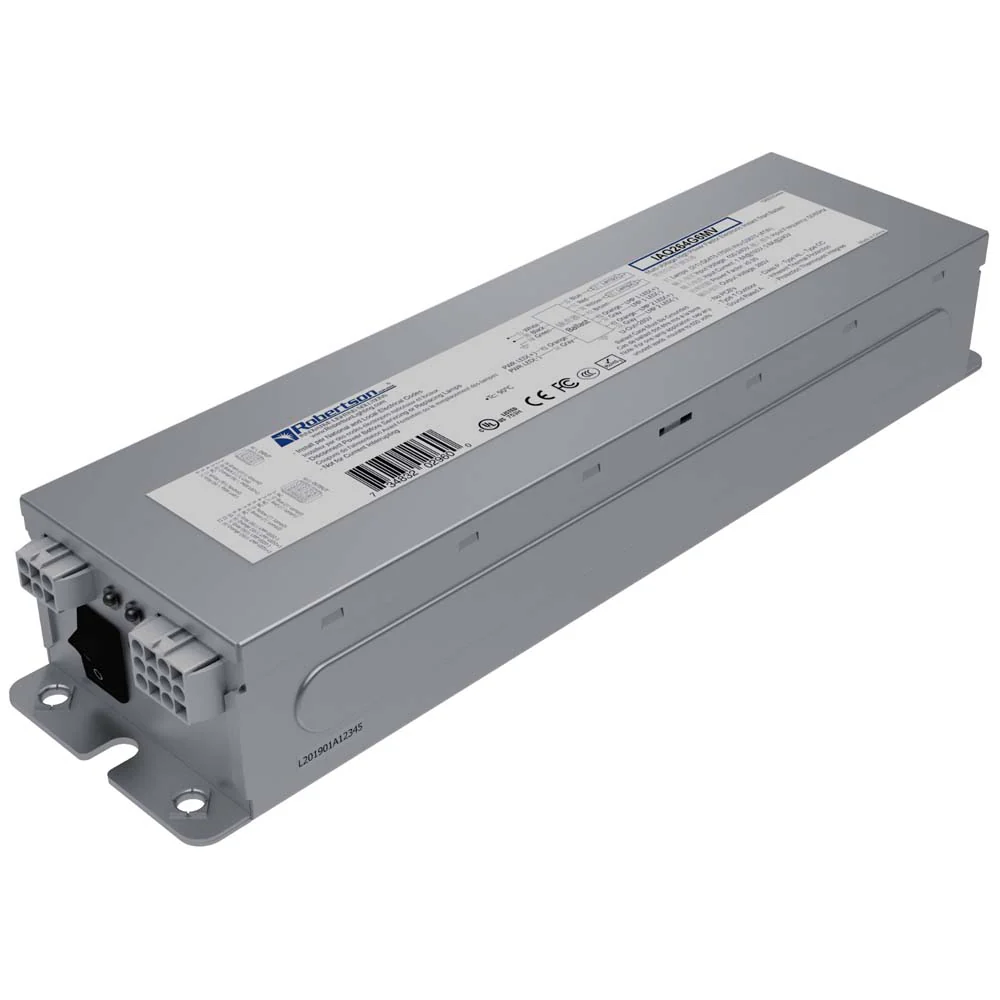

-65%Robertson IAQ264G6MV Electronic Instant Start Ballast 100-240V—
$148.99
$52.15The Story
Description

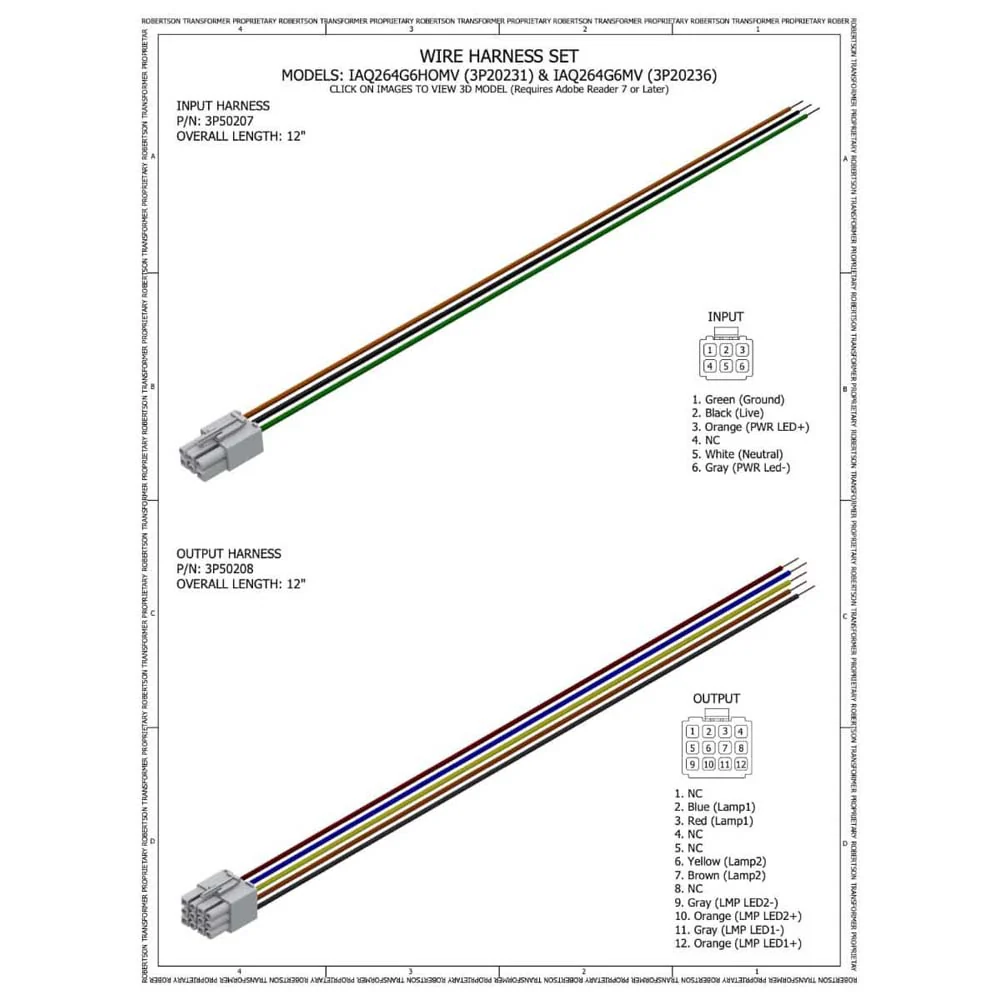

Electronic Instant Start Ballast (for Instant Start Lamps), 425mA nominal lamp current with an Arc voltage between 92V-176V, Input voltage of 100-240Vac, for 2/1 39W-75W Lamps, 50-60Hz, wire harness connectors (included with ballast).
APPLICATION- Maximum Case Temperature 194F/90C
- Maximum Ambient Temparature 122F/50C
- Maximum Starting Temperature 0F/18C
- Lamp Starts >50,000 Starts
- Remote Mounting 20 ft.Max.Lead Length,18AWG Shielded or in Conduit
SAFETY & CERTIFICATIONS:
- UL 935 (Class P,Type CC,Type1 Outdoor, Type HL)
- cULus,CE,CCC
- Leakage Current to UL/935 Standard
- EN 61347-1:2001
- EN 61347-2-1:2001
- EN 61347-2-3:2000
- RoHS EU Directive 2011/65EU&2015/863 Amendment RoHS 3)
- Anti- Arcing
- Output Short Circuit Protection
- Output Open Circuit Protection
- Restrike Attempts =2
- Inrust Current <40AMPS
- Meets ANSI Standard C62.41 for transient Protection
- Meets ANSI Standard C82.11 for Ballast Requirements
- Sound Rated A
Specs
| Ballast Type | Electronic |
| Starting Method | Instant |
| Input Voltage | 100-240Vac 10% |
| Lamp Connection | Parallel |
| Input Frequency | 50/60Hz |
| Housing | 22ga 5052 H43 Aluminum |
Lamp Compatibility
- G36T5L
- G36T5L/C
- G36T5VH
- G36T5VH/C
- G36T6
- G36T6L
- G36T6L/U
- G36T6VH
- G36T6VH/U
- G37T6L
- G37T6VH
- G48T5L
- G4875VH
- G48T6L
- G48T6L/U
- G4876VH
- G48T6VH/U
- G64T5
- G64T5L
- G64T5L/C
- G64T5VH
- G64T5VH/C
- G67T5L
- G67T5VH
- GU22-36T5L
- GU22-36T5VH
- GU76-36T5L
- GU76-36T5VH
- LTC40T5
- LTC64T5
- TUV 36 SPT5
- TUV 64 SPT5
- G36T5L/C
- G36T5VH
- G36T5VH/C
- G36T6
- G36T6L
- G36T6L/U
- G36T6VH
- G36T6VH/U
- G37T6L
- G37T6VH
- G48T5L
- G4875VH
- G48T6L
- G48T6L/U
- G4876VH
- G48T6VH/U
- G64T5
- G64T5L
- G64T5L/C
- G64T5VH
- G64T5VH/C
- G67T5L
- G67T5VH
- GU22-36T5L
- GU22-36T5VH
- GU76-36T5L
- GU76-36T5VH
- LTC40T5
- LTC64T5
- TUV 36 SPT5
- TUV 64 SPT5
Data Sheet
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Description
Electronic Instant Start Ballast (for Instant Start Lamps), 425mA nominal lamp current with an Arc voltage between 92V-176V, Input voltage of 100-240Vac, for 2/1 39W-75W Lamps, 50-60Hz, wire harness connectors (included with ballast).
APPLICATION- Maximum Case Temperature 194F/90C
- Maximum Ambient Temparature 122F/50C
- Maximum Starting Temperature 0F/18C
- Lamp Starts >50,000 Starts
- Remote Mounting 20 ft.Max.Lead Length,18AWG Shielded or in Conduit
SAFETY & CERTIFICATIONS:
- UL 935 (Class P,Type CC,Type1 Outdoor, Type HL)
- cULus,CE,CCC
- Leakage Current to UL/935 Standard
- EN 61347-1:2001
- EN 61347-2-1:2001
- EN 61347-2-3:2000
- RoHS EU Directive 2011/65EU&2015/863 Amendment RoHS 3)
- Anti- Arcing
- Output Short Circuit Protection
- Output Open Circuit Protection
- Restrike Attempts =2
- Inrust Current <40AMPS
- Meets ANSI Standard C62.41 for transient Protection
- Meets ANSI Standard C82.11 for Ballast Requirements
- Sound Rated A
Specs
| Ballast Type | Electronic |
| Starting Method | Instant |
| Input Voltage | 100-240Vac 10% |
| Lamp Connection | Parallel |
| Input Frequency | 50/60Hz |
| Housing | 22ga 5052 H43 Aluminum |
