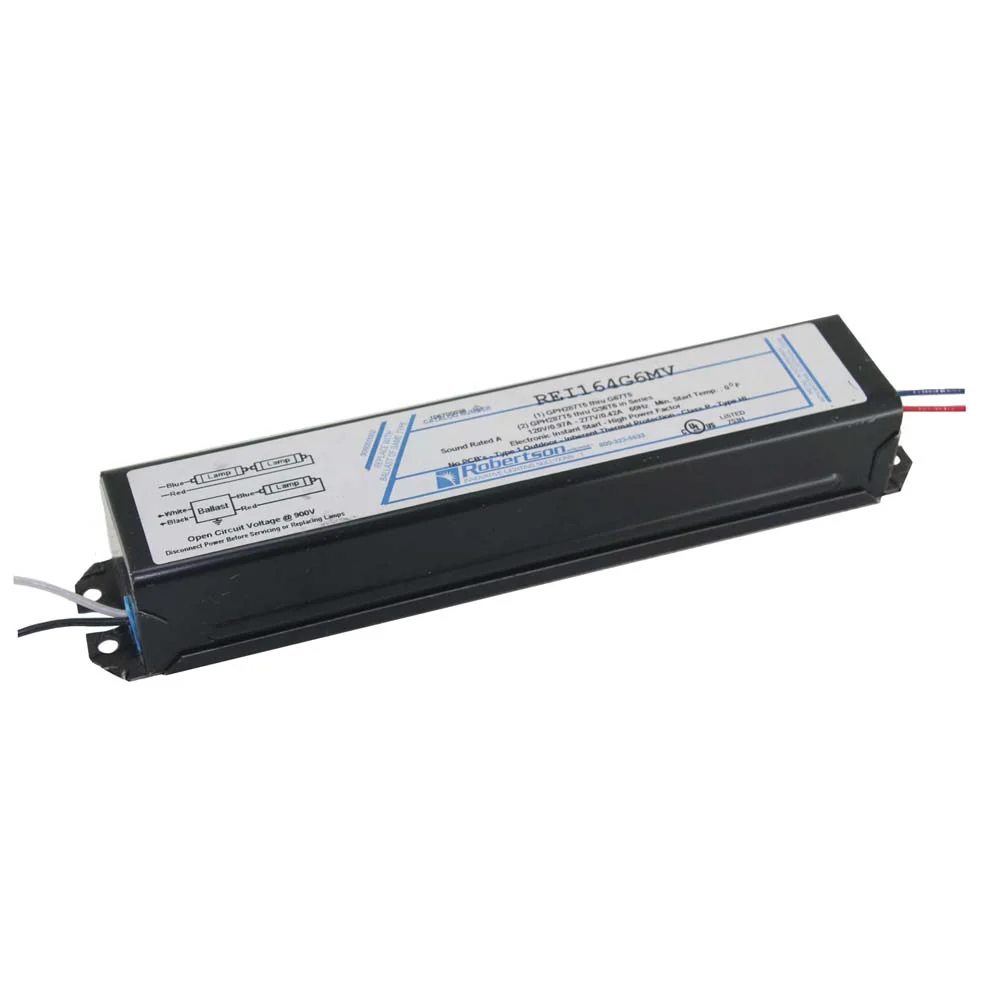

Robertson Electronic Start for 1 Lamp 14-79W 120-277V

Electronic Instant Start Ballast (for Instant Start Lamps), 425mA nominal lamp current with an Arc voltage between 33V-186V, Input voltage of 120-277Vac, for 1 14W-79W Lamp, 50-60Hz.

PERFORMANCE:
- Max Current THD 20%
- Current Crest Factor 1.5
- Power Factor 0.90
- Encased & Potted
- Sound Rated A
- Meets FCC Part 18 (Class A) for EMI and RFI Non-Consumer Limits
- Meets ANSI Standard C62.41 for Transient Protection
- Meets ANSI Standard C82.11 for Ballast Requirements

APPLICATION:
- Maximum Case Temperature 167F/75C
- Maximum Ambient Temperature 104F/40C
- Minimum Starting Temperature -0F/-18C
- Lamp Starts >15,000 Starts
- Remote Mounting 18 ft. Max. Lead Length, 18AWG

Ballast Type	Electronic
Starting Method	Instant
Unit Color	Black
Input Voltage	120-277Vac 10%
Lamp Connection	Parallel
Input Frequency	50-60Hz

- 0T5VH/C
- G10T5 1/2 L
- G10T5 1/2 VH
- G10T5L
- G10T5L/C
- G10T5VH
- G10T5VH/C
- G14T5
- G18T6L
- G18T6VH
- G24T5L
- G24T5VH
- G24T6L
- G24T6VH
- G30T6L
- G30T6L/U
- G30T6VH
- G30T6VH/U
- G36T5
- G36T5L
- G36T5L/C
- G36T5VH
- G36T5VH/C
- G36T6
- G36T6L
- G36T6L/U
- G36T6VH
- G36T6VH/U
- G37T6L
- G37T6VH
- G48T5L
- G4875VH
- G48T6L
- G48T6L/U
- G4876VH
- G48T6VH/U
- G64T5
- G64T5L
- G64T5L/C
- G64T5VH
- G64T5VH/C
- G67T5L
- G67T5VH
- GLS692T5VH
- GSL692T5L
- GU22-10T5L
- GU22-10T5VH
- GU22-36T5L
- GU22-36T5VH
- GU22-390T5L
- GU22-390T5VH
- GU76-10T5L
- GU76-10T5VH
- GU76-36T5L
- GU76-36T5VH
- GU76-390T5L
- GU76-390T5VH
- LTC40T5
- LTC64T5
- TUV 36 SPT5
- TUV 64 SPT5

Manual:

REI164G6MV Data Sheet
