The Story
Description

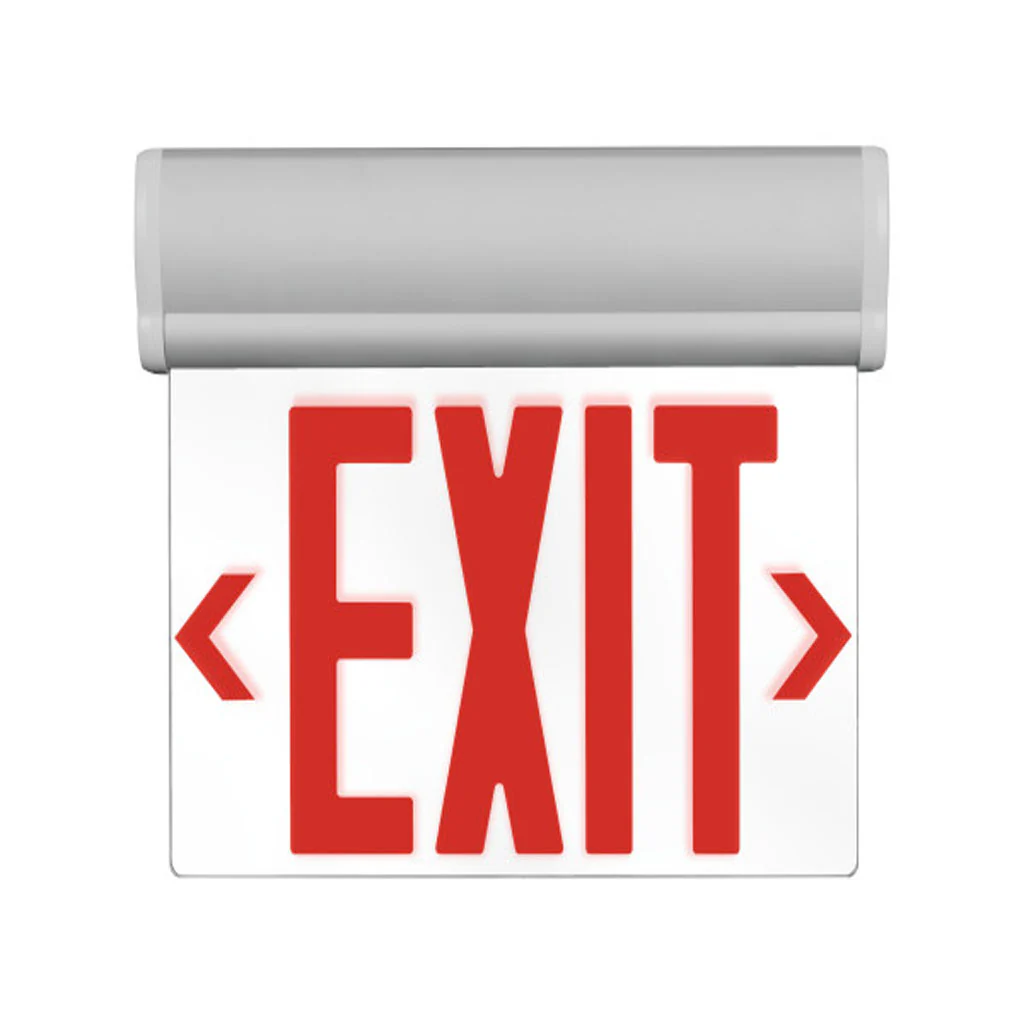

The EXL2-20 Series LED Edge-Lit Exit Sign features a contemporary design, built with dependability in mind. The sign is constructed using impact-resistant (optically clear) acrylic in a single-sided configuration. Bright LEDs illuminate the exit sign with exceptional light distribution and quality. The thin, edge-lit design saves space and reduces weight, making installation a breeze (considering it is usually done on a ladder). The EXL2-20 can be mounted from the top or end of the base. The adjustable base rotates 90for easy installation on any surface. The EXL2 features an integrated nickel-cadmium battery to provide 90-minute emergency run-time if the power gets cut. Directional chevron arrows are included. Available in red or green lettering.
Features:- Clear, single-sided configuration
- Maintenance-free NiCad battery provides 90-minute emergency operation
- Satin finished, spec-grade aluminum base housing
- Impact-resistant acrylic sign face
- 120/277VAC Dual-Voltage operation (60Hz input)
- Integrated low-voltage disconnect to eliminate deep discharge
- Brown-out, short-circuit, and voltage-surge protection
- Push-button test switch with LED indicator
- Includes mounting-plate and hardware for easy installation
- Includes optional chevron arrow indicators
- Protected by NICOR 1-year limited warranty
Specs
| Size | 12 |
| Product Color | Clear, Red Letters |
| Finish | Satin |
| Light Source | LED |
| Wattage | 2.3 |
| Lumen | 187.4 |
| CRI | 83 |
| Operating Temperature | 32?F - 104?F (0?C - 40?C) |
| Listings/Certifications | UL 924 Listed, cUL 924 Listed, NFPA 70 Compliant, NFPA 101 Compliant, FCC Class B, Damp-Location |
| Other Certifications | Meets or exceeds requirements of NFPA 70 & NFPA 101 Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions |
| Warranty | 1 Year Limited |
