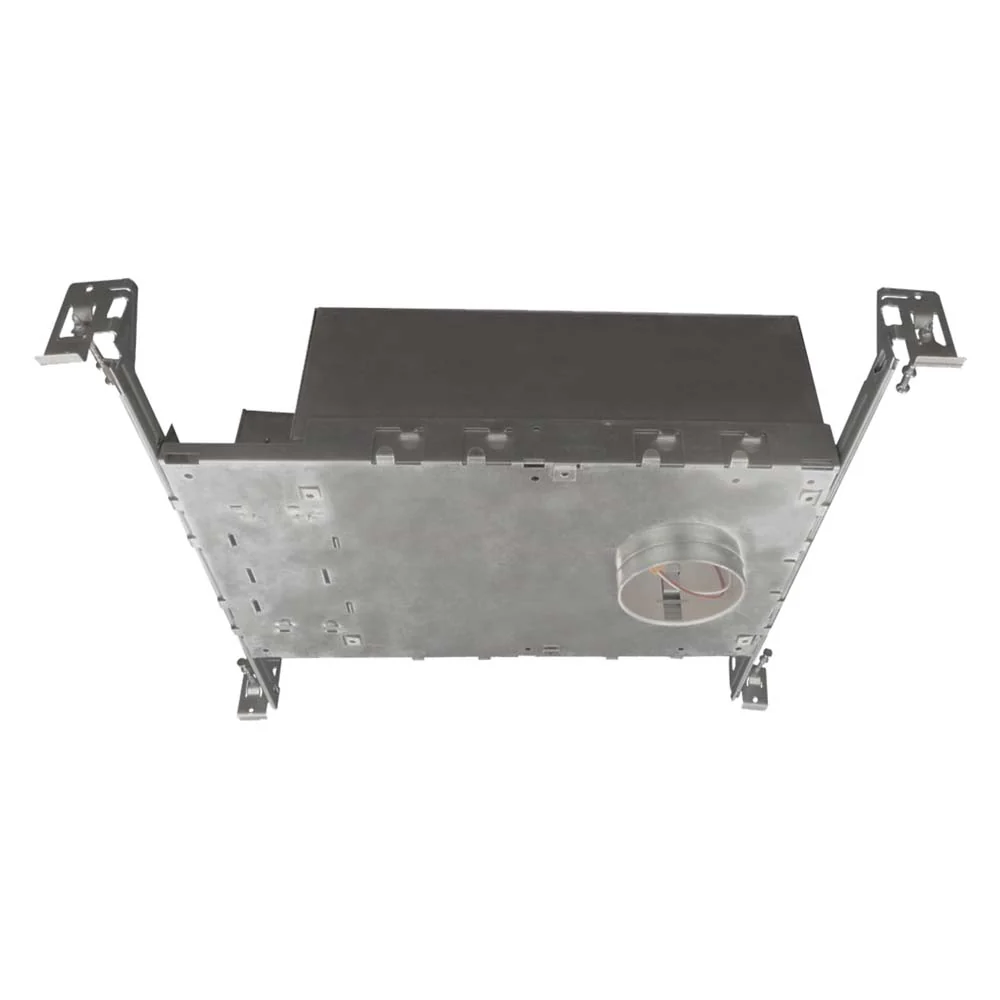

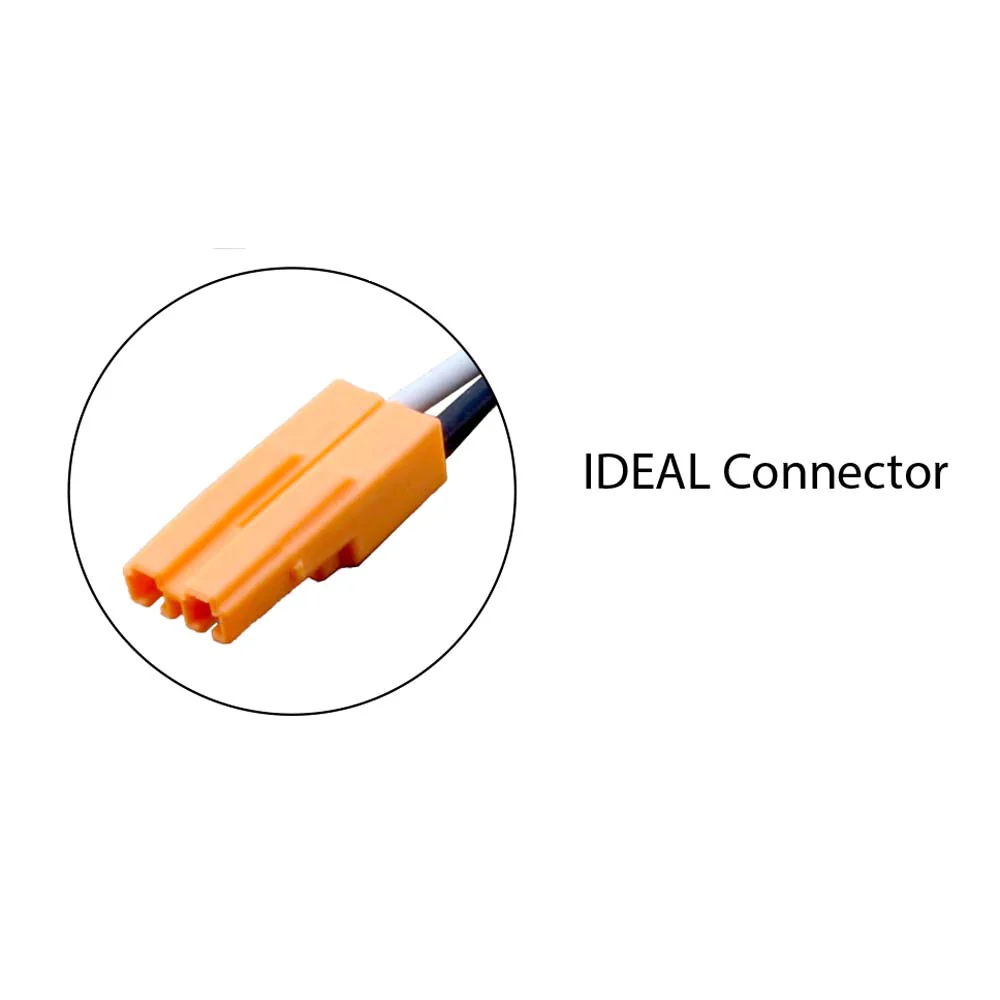

The 12300A-LED New Construction housing is compatible with all 2-inch LED downlights from NICOR. This housing Features an IDEAL quick connect adapter, making downlight installation as easy as possible. The 12300A-LED housing is Insulation Contact Rated (IC-Rated) and Airtight to keep your home or office insulated and energy efficient. The hanger bars (with pre-set nails) can extend out to reach 24-inch joists, and shortened to accomodate 12-inch joists. The 12300A-LED accepts 120-277V and is pre-wired for 0-10V dimming. The housing is Energy Star rated and Title 24 compliant, and Wet-Location rated when used with non-adjustable downlights, or Damp-Location rated when used with adjustable downlights (such as eyeballs and gimbals). The 12300A-LED is protected by NICOR's 5-Year Limited Warranty.
Features:- Compatible only with NICOR's 2-inch LED downlights
- Galvanized steel frame with built-in junction box
- Designed for universal voltage (120-277-Volt) and equipped with 0-10V dimming
- Suitable for direct contact with insulation. IC-Rated
- Airtight. Keeps your home or office insulated
Specs
| Model Number | 12300A-LED |
| Size (in.) | 2 |
| Product Color | Neutral |
| Finish | Galvanized |
| Wattage | 9 |
| Voltage | 120-277V |
| Dimmable | Yes |
| Dimming Type | 0-10V |
| Listings/Certifications | UL Listed cUL Listed IC-Rated Airtight Energy Star Title 24 UL Feed-Through Damp Location |
| Warranty (Years) | 5 Years Limited |
