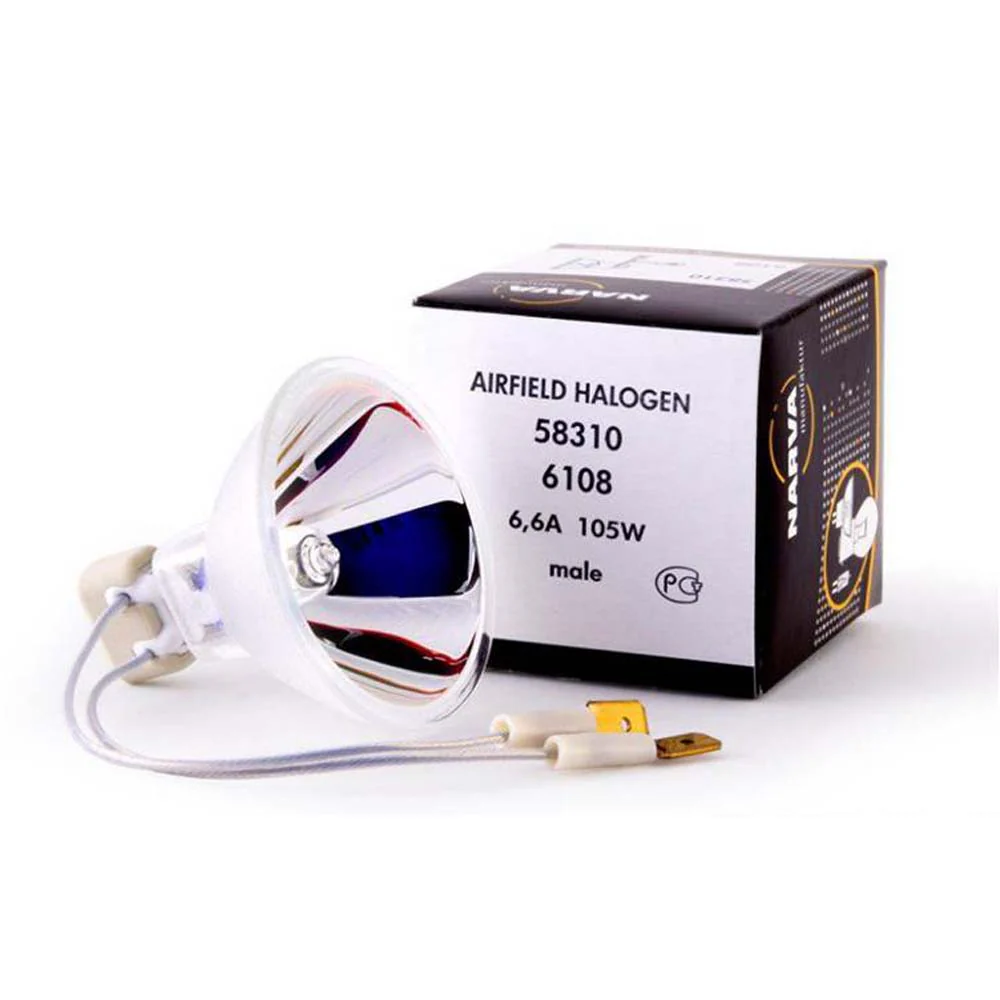

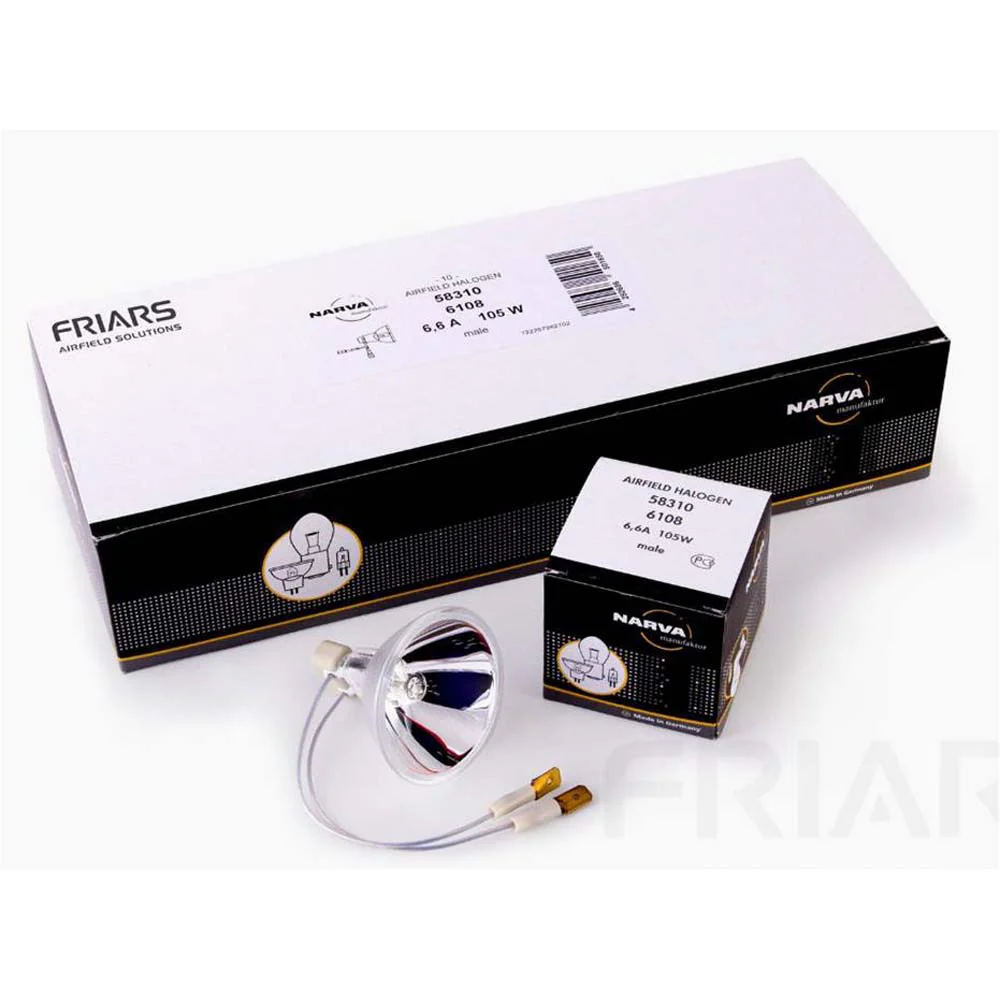

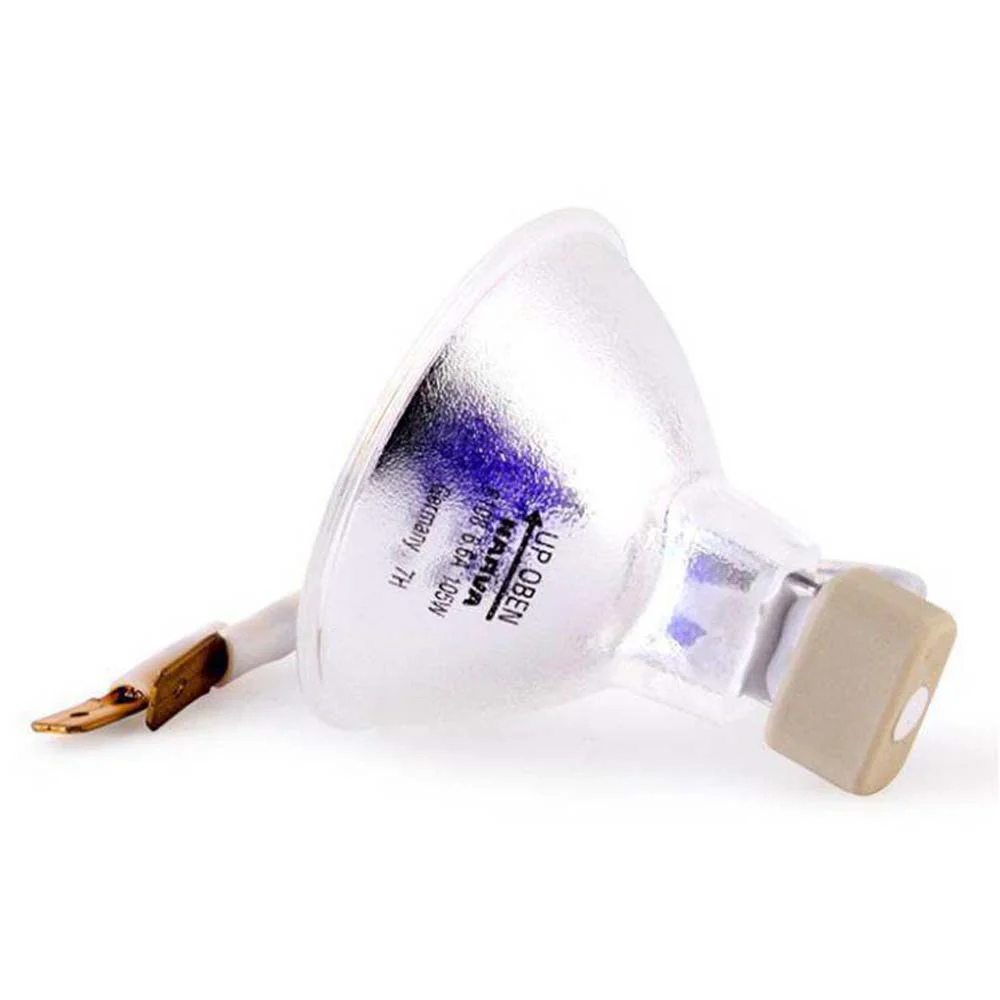

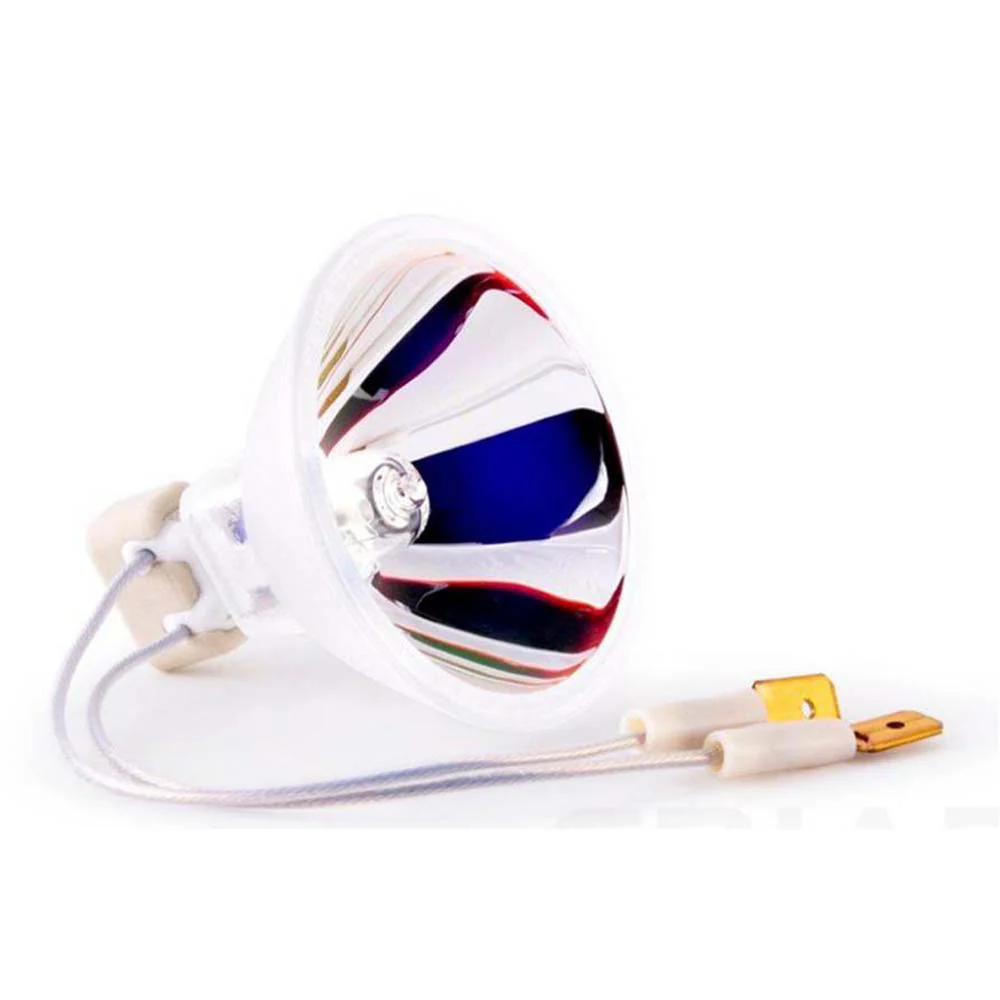

Narva 58310 - 6108 - 64339C - 105W 6.6A Flat Male Connectors Aviation Bulb

Narva Type 6108 Halogen Dichroic Reflector Airfield Lamp offers a world-class solution for airfields across the globe. The high and constant 105W lumen output combined with a high degree of optical adjustment and suitability for series operation makes the Type 6108 a leading choice for a multitude of airfield ground lighting systems. The unit is completely mercury-free for full compliance with regulations, including FAA and ICAO, and uses a male flat connector.

Features:
- Made in Germany
- 105W power at 6,6A current consumption
- Robust base in Cable Flat Male shape - without cement
- 1000 hours lamp life
- High and continuous total luminous flux
- Intensive light concentration

Application:
- Approach lighting and ground threshold lighting
- Runway and taxiway lighting
- Airport information signs
- Illumination of brake strips and touchdown zones

Cross Reference:
- Sylvania: L2369 / 21499
- Osram: 64339-C, 64339C
- Osram: 58963
- Philips: 6108
- Philips: 9230 199 859

Manufacturer	NARVA
Origin	Made in Germany
Bulb Type	Halogen Bulbs
Base	Cable Flat Male Connector
Filament Type	C-8
Rated Current (A)	6,6
Reflector type	MR16
Wattage	105
Lumens	30000
Rated Life	1000 hrs
MOL (in)	1.77 (45 mm)
Diameter (in)	1.93 (49 mm)
Maximum allowed cable temperature (C)	250
Maximum allowed pinch temperature (C)	350
Burning Position	S90
Part Number	58310
UPC	4250686501643

Manual:

58310 Data Sheet
