Current 8-in. Square LED Surface Mount CCT Select 90CRI Remote J-Box Mount

Prescolite LBSES-8SQD-RM-CS9-WH 8-inch Square LED Surface Mount Downlight Module, 200Watt 1770 Lumens (65w incandescent equivalent), Wet Location, 120V/277V, Switchable Color Temperature, 90 CRI, White Color Finish Current Prescolite LiteBox Edge-Lit is a low-profile surface-mount downlight family that affordably combines LED edge-lit technology and contemporary appearance with ease of installation and functional versatility. The LiteBox Edge-Lit Switchable CCT (LBSES) can be field configured to 27K, 30K, 35K, or 40K with a simple switch. This allows flexibility during and after initial installation. The LBSES has enhanced color rendering with 90 CRI and is Title 24 JA8 compliant.

FEATURES:
- Shape: Square, with 0.5inch Low surface profile

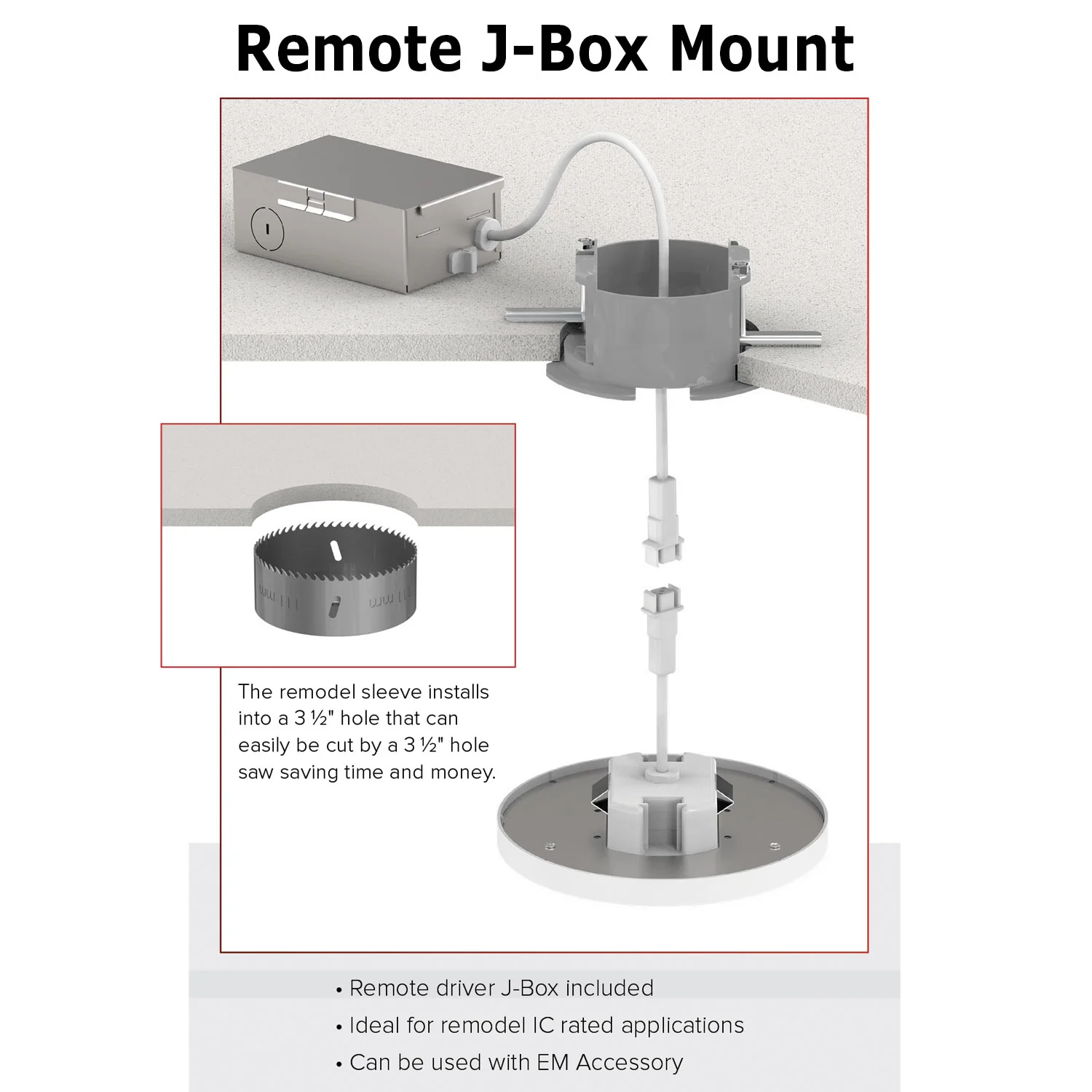

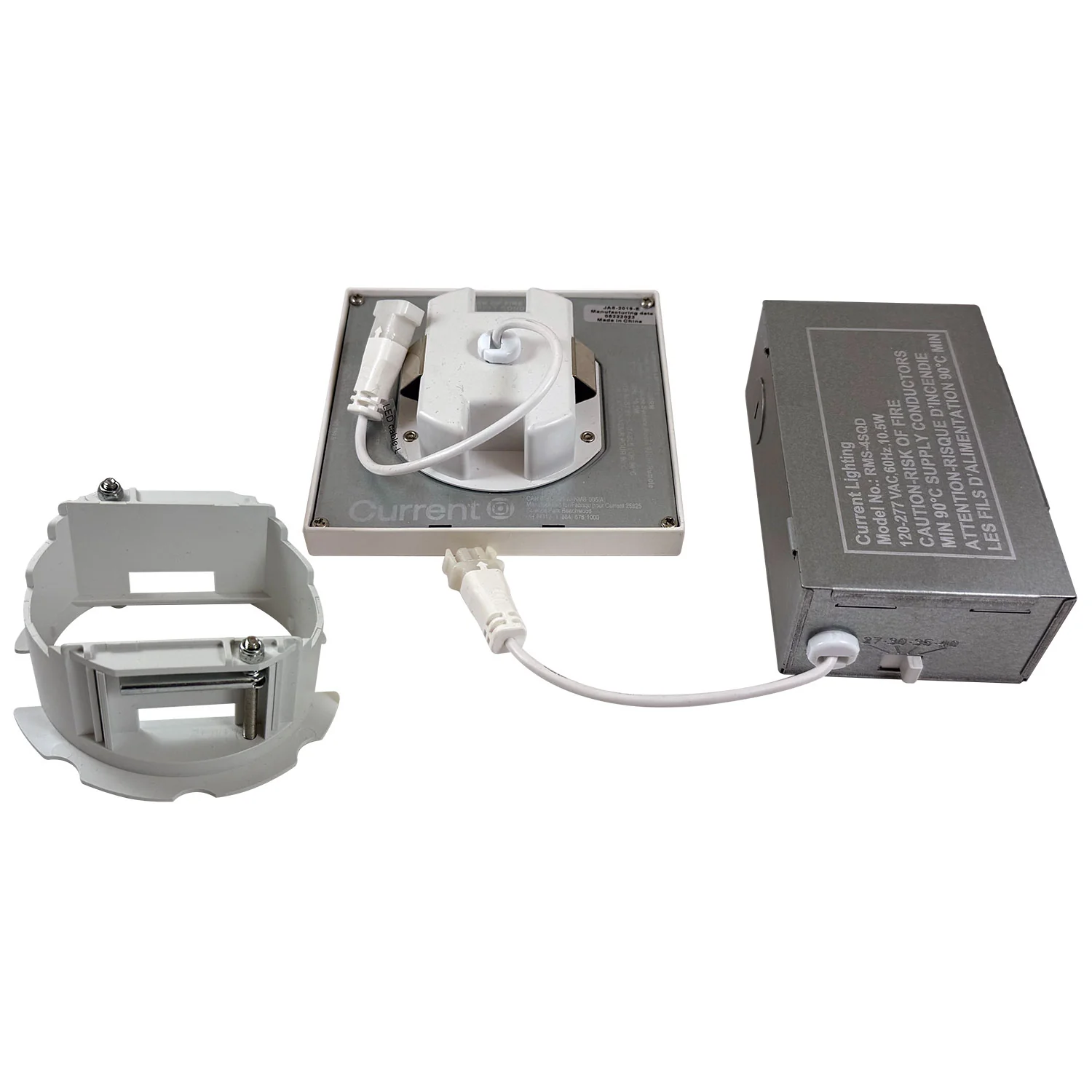

- Remote Mount uses a convenient 3 1/2" sleeve that can be installed into any space using a standard 3 1/2" hole saw
- Quick snap installation with no housing required
- Ideal for remodel IC-rated applications
- Eliminates the need for a recessed housing, ideal for areas with limited plenum space
- Switchable CCT (2700K, 3000K, 3500K, 4000K) - by selecting one of four CCTs at installation with an integral switch accessible on the back of the driver
- Universal 120-277V, ideal for home and commercial applications
- TRIAC/ELC - Flicker-free dimming with 120-277V 0-10V Dim to Off or 120V Triac or ELV phase cut to 5%
- EMI: Meets Class A (<24dba) noise rating, FCC CFR 47 Part 15 Class B, ≥0.9 Power Factor, <20% THD

OPTICS:
- Utilizes the latest Edge-Lit LED technology
- Integral diffuse polycarbonate lens provides uniform light distribution
- Light distribution is free of distracting bright spots
- Visually comfortable with low glare

CERTIFICATIONS:
- cETLus listed to UL1598
- Can be used in direct contact with insulation (IC Rated)
- Suitable for wet locations, covered ceiling
- Suitable for use in clothes closets when installed in accordance to N.E.C. 410.16
- ENERGY STAR certified
- Meets CA Title 24 High Efficacy (JA8 2019) requirements
- Warranty: 5 Year Limited

Fixtures Type	Surface Mount
Size	8-in
Volt	120-277
Watts	200w
Finish	White
Shape	Square
Base	Integrated
Color	CCT Selectable
Color Temp	2700k, 3000K, 3500K, 4000K
Lumens	1770L
Rated Life	54,000 hrs
CRI	90
Energy Star	Yes
Warranty	5 Year Limited

Manual:

LBSES-8SQD-RM-CS9-WH Brochure Manual
