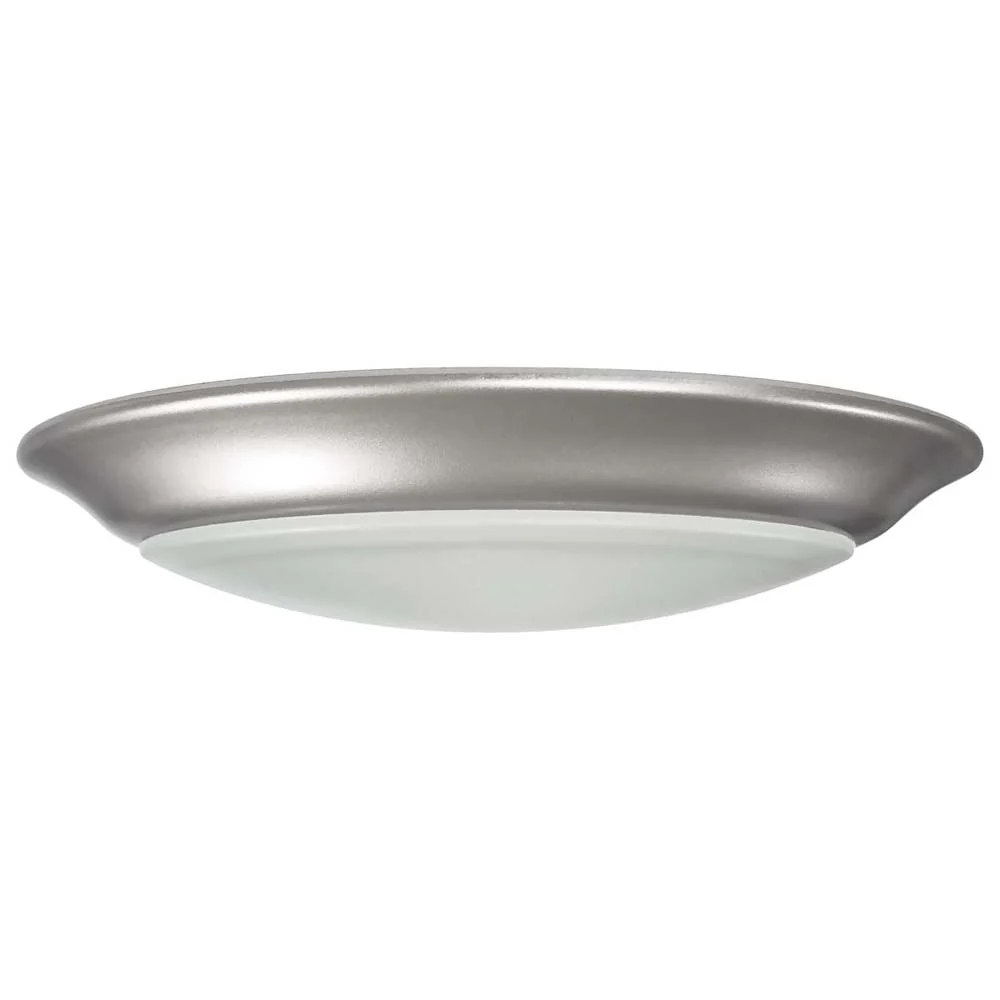

LED Disk Light fixtures now feature Satco's ColorQuick selectable CCT technology for even more versatility. The simple CCT selection, easy installation, choice of diameter size, finish color, and packaging options make these the most functional design available. NEC compliant and wet location rated, the Satco LED disk fixtures are truly an all-purpose lighting solution.
Features:- Closet Rated - NEC 410.16(A)(3) and NEC 410.16(C)(5)
- Mounts to 3 in. and 4 in. Junction Boxes
- Wet Location Rated
- Rated for 50,000 Hours
- 5 Year Warranty
- Operating temperature ranging from a minimum of -35C (-31F) to a maximum of 50C (122F)
Specs
| General | |
| Finish | Brushed Nickel |
| Beam Angle | 110 |
| CCT (Kelvin) | 5000K |
| Temperature | Natural Light |
| Style | Transitional |
| Height (in.) | 1.28 |
| Width (in.) | 7.4 |
| Indoor or Outdoor Fixture | Indoor |
| Smart Product Info | |
| IOT Enabled | No |
| Specifications | |
| Technology | LED |
| Base | Integrated |
| ANSI Base | Integrated |
| CRI | 90 |

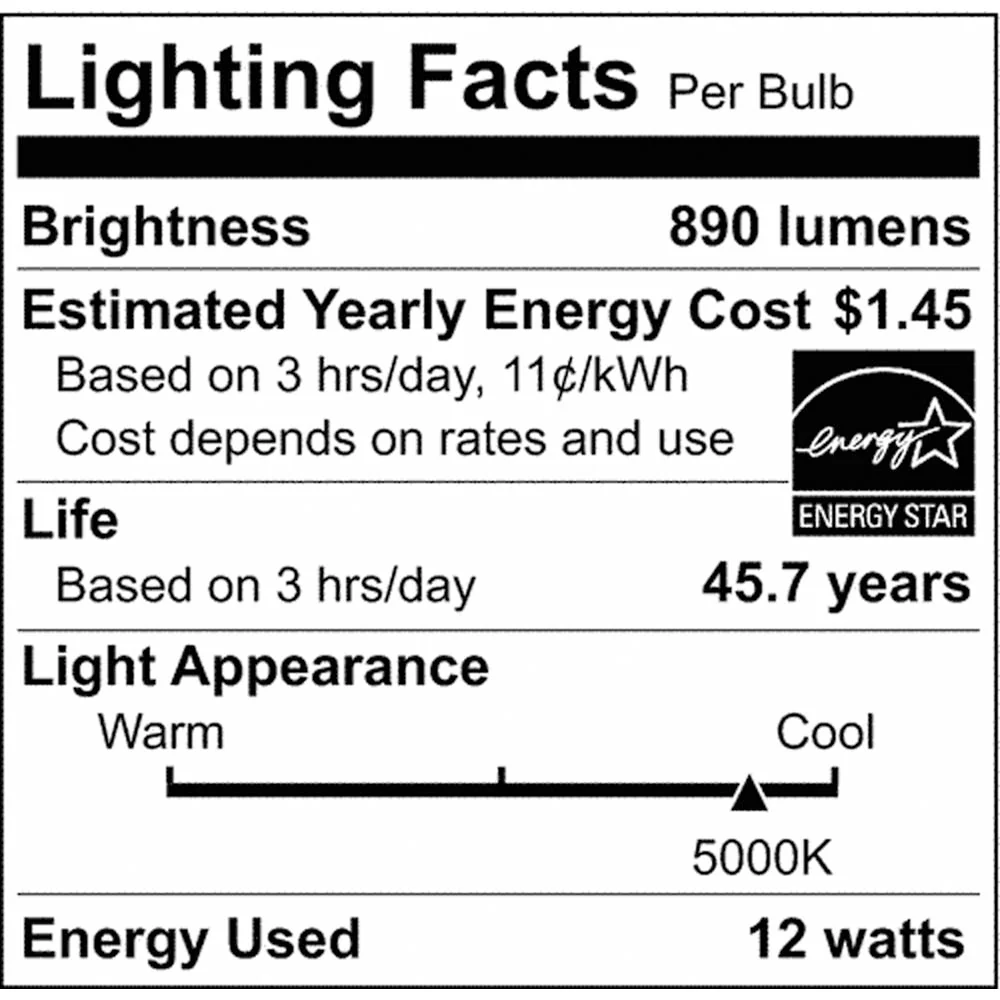

| Lumens | 890L |
| Rated Hours | 50,000 hrs |
| Voltage | 120V |
| Wattage | 12W |
| Dimmable | Yes-Dimmable |
| Bulb Included | Integrated |
| Weight (lb.) | 0.79 |
| Sloped Ceiling | Yes |
| Shape | Round |
| Fixture Type | Disk Light |
| Operating Temperature | -35C (-31F) to +50C (+122F) |
| Fixture Material | Steel |
| Dimensions | |
| Height (in.) | 1.28 |
| Width (in.) | 7.4 |
| Length (in.) | 7.4 |
| Compliance | |
| Safety Listing | cETLus |
| Location Rating | Wet |
| Energy Star | Yes |
| CA T20 / T24 Rationale | California T24 2016 - 2022 JA8, Listed Regulated |
| California Status | Lawful for sale in California |
| Title 20 / 24 Status | California T24 Listed |
| California Prop 65 | Lead |
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| Additional Information | |
| Warranty | 5 Year Limited |
